Stainless steel craft brewing beer fermenter

Payment Type: L/C,T/T,D/P
Min. Order: 1 Set/Sets
Delivery Time: 60 Days

Basic Info

Model No.: DHB-FT

Processing Material: Natural Ingredients

Process: Ferment

Additional Info

Packaging: Standard export packing

Productivity: 10 set / month

Brand: Deao

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 20 set per month

HS Code: 8438400000

Port: Shenzhen Port,Dongguan Port,Hong Kong Port

Product Description

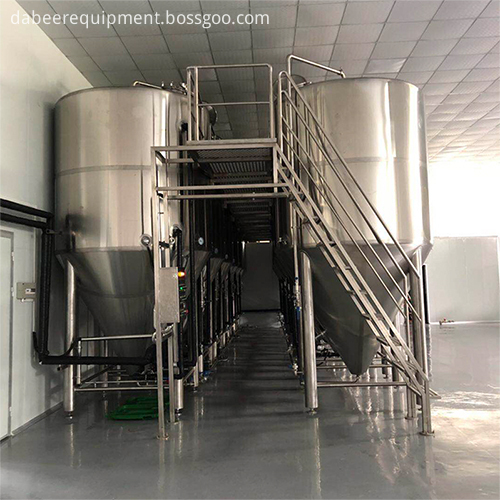

   Stainless Steel Craft Brewing Beer Fermenter and Storage Tanks

    Dongguan Deao has been manufacturing various size of fermentaters and exporting them to overseas markets and setting up local Pub chain stores. I work with a number of western     colleagues from the Germany, Australia, and Russia. Our products have mature techincal supports, skillful working labor and competitive cost.

    We manufacture fermenters at size from 50L nano to 3hl, 5hl, 10hl, 20hl taproom tanks to 30hl, 50hl, 150hl commercial brewery tanks, and we also undertake construction for you     on an Original Equipment Manufacturer (O.E.M), or size as to your brewery spaces.

    Details of the our product are featured within content below:

    for example 5000L fermentation tank


  • double walled, completely insulated
  • upright construction, test pressure 0,99 bar
  • upper bottom as dished head
  • lower bottom as conical bottom with opening angle 60°
  •         Fermentation tank production

   equipped with:

  • upper bottom
  • 1 connection piece DN 25/25 DIN 11851
  • for RLV fitting with CIP connection piece DN 25
  • 2 crane eyes
  • 1 manhole
  • 2 connections for cooling, welding nipple R ½[
  • 1 thermometer
  • 1 connection piece R ½[
  • 1 outlet DN 32 DIN 11851
  • 3 feet made of stainless steel with pressure plates

 Fermenter Temperature Control system:

1. Tanks Temperature automatic controlled by combined PLC system

2. Tanks controlled by individual temperature controller without cold water tank.

CIP for Fermentation tanks

1. Mobile CIP

two tanks 150L, acid tank and alkaline tank with heating elements

with pump

150L mobile cip

2. Automatic CIP system

 For scale brewery, we will design automatic cleanning system as to your detailed need.

All the valves are pneumatic valves, which are controlled by computer.

With a series of recycle and cleaning liquid storage tanks as to number of fermentation tanks


3. Cooling plant – Glycol for wort and vessel cooling

in compact design:

for internal installation

made as one-circle system

refrigerant: R134a

glycol wage: 20%

cooling plant

Complete flowchart for example:

Flow Chart
