10HL 3 Kettle Brewhouse Craft Beer Machine

Basic Info

Model No.: DHB-1000-3

Processing Material: Natural Ingredients

Process: Ferment

Material: SUS304 OR 316L

Capacity: Effective 1000L

Size: Bespoke Design, Normal H 2.8* D2.5* W3.4 Meter

Electrical Parts Brand: Siemens, SMC

Motors: SEW

Operation: Semi-Automatic

Power: 100KW, 380 V, 3 Phase

Warranty: 3 Year

Additional Info

Packaging: wooden case or fix in container

Productivity: 100 set

Brand: deao

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 10 set per month

HS Code: 8343400000

Port: Dongguan,Shenzhen,Hongkong

Product Description

10HL 3 Kettle Brewhouse Craft Beer Machine

Deao Food Equipment  has stock of this 3 Kettle Beer Machine. We also provide bespoke fabrication of craft beer machines, not limited to 3 vessel brewhouse in size, capacity and materials. Operation is optional from manual, semi-automation and fully automation. Complete configuration will be make out as to your detailed requirement and contruction conditions. Material is 316L or SUS304, professional Tig welding, internal wall and surface polished. Jacket cooling jacket fermenters and brite tanks, fully insulated by PU.

3 Kettle Beer Machine

The steam heating brewhouse is 3 vessel German type.

• Mash - Wort Boiler
• Lauter tun
• Whirlpool - Non-heat insulation

This brewhosue includes, but not limited to

1. 3 vessels connected well by pipes and valves. With 2 mashing pump and lautering pump.

2. SUS316L stainless steel are completely used.

3. Convenient cabinet control of all brewing process, semi-automatic operation brewery.

4. With mobile CIP for cleaning fermentation and conditioning tanks.

The details of this brewhouse is featured as following photos and descriptions:

Control Cabinet and Siemens Electrical Parts

Raker and SEW motor

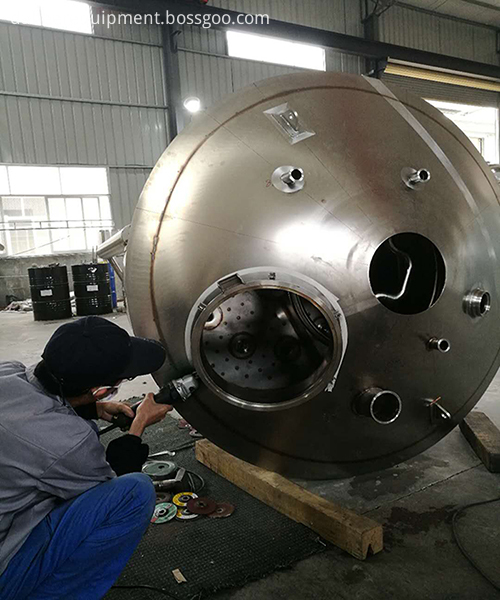

Welding and polishing

Glasssight manhole

Internal Cooker and agitator

Underback with level sensors

Lauter tun manhole

Danfoss brew water mixer

Quality Flowmeter

Pneumatic valves

Boiling vapor heat collection

1000L fermentation tank and brite tanks

1. Conical fermentation tank and horizontal lagering tank are available.

2. SUS304, internal wall 3mm, inner welds polished; outer shell 2mm, surface polished.

3. With cooling jacket on cylinder and conical bottom. Equipped with chiller and glycol tank.

4. Side manhole, top CIP spray heads, security valve and pressure measurement.

5. Conical fermenter is 60 degree bottom, equipped with tap, temperature sensor, faucet.

6. Glycol inlet and outlet.

7. PU insulation 50mm.



equipped with all necessary fittings:

Hot water tank 20hl stainless steel 304

Brew Water Plant

• with a pre-treatment water tank, and a brew water tank, water plant
• the active carbon bottle can be replaced by food grade stainless steel.

Cooling plant – Glycol for wort and vessel cooling

• in compact design:
• for internal installation
• made as one-circle system
• refrigerant: R134a
• glycol wage: 20%

Keg filling machine

KEG Filling and cleaning machine Multimat MT2

Additional bottle cleaning station (6 position)

Addtional bottle filler AF80

Steam Generator

Electric heating steam generator

380V, 72Kw, two groups

with security valves and anti-dry heating protection

Malt Mill, Malt Conveyor, Malt Transport Pump, Wet Malt Mixer, Heat Exchanger, Hops Gun, Yeast Cultural Tank, Air compressor,  Chiller and all other accompanying equipment are available from our company. Please write down your equipment list, we make a configuration and complete turnkey solution for you.

Flow chart,
